​ 本文讲解spring-cloud-loadbalance这个包,这个包提供了微服务下的负载均衡功能。要想使用负载均衡前提是必须拥有注册中心,同一个名字的服务在注册中心上存在多个实例,这是就需要负载均衡来实现对多个实例的均衡请求。

​ 类比一下dns系统,一个域名在dns上可能存在多个ip地址,这就相当于同一个微服务模块在注册中心上存在多个实例,我们进行dns查询后获取到的多个ip地址,我们会选择其中一个进行连接,具体如何选择就需要一种策略来实现。一般查询dns会选择第一个ip地址,而微服务里的负载均衡会采用轮询的方式平均使用所有的实例。

堵塞式负载均衡接口api

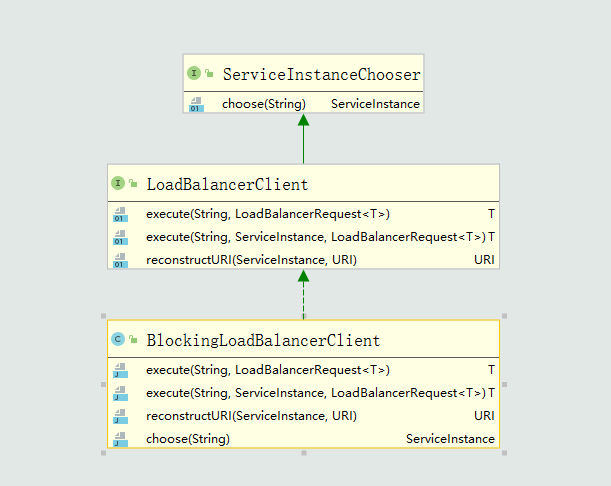

​ 首先看它的继承图

image-20200930163757870

​ 负载均衡的接口是这样的,他的核心接口是LoadBalancerClient

1
2
3
4
5
public interface ServiceInstanceChooser {
//传入微服务id,返回服务的详细信息(ip地址,端口 等)
ServiceInstance choose(String serviceId);

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
public interface LoadBalancerClient extends ServiceInstanceChooser {

//传入微服务id和request对象,将request对象的执行返回结果返回
<T> T execute(String serviceId, LoadBalancerRequest<T> request) throws IOException;

//传入微服务id,微服务实例,request,将request对象的执行结果返回
<T> T execute(String serviceId, ServiceInstance serviceInstance,
LoadBalancerRequest<T> request) throws IOException;

//传入服务信息,和原始uri,将原始uri里面的host字段替换成真实服务的ip并返回
URI reconstructURI(ServiceInstance instance, URI original);

}

LoadBalancerRequest对象像下面这样,只需要传入微服务实例,就能得到结果。

1
2
3
4
5
public interface LoadBalancerRequest<T> {

T apply(ServiceInstance instance) throws Exception;

}

​ 所以核心方法就是choose(String serviceId),他能由字符串形式的服务id得到服务实例。LoadBalancerClient的默认实现是这样的。我已经将多余部分删除了,他的逻辑就是使用choose方法获取到服务实例,然后调用request对象的apply方法就能得到结果。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
public class BlockingLoadBalancerClient implements LoadBalancerClient {

@Override
public <T> T execute(String serviceId, LoadBalancerRequest<T> request)
throws IOException {
ServiceInstance serviceInstance = choose(serviceId);
return execute(serviceId, serviceInstance, request);
}

@Override
public <T> T execute(String serviceId, ServiceInstance serviceInstance,
LoadBalancerRequest<T> request) throws IOException {
return request.apply(serviceInstance);
}

@Override
public URI reconstructURI(ServiceInstance serviceInstance, URI original) {
return LoadBalancerUriTools.reconstructURI(serviceInstance, original);
}


@Override
public ServiceInstance choose(String serviceId) {
ReactiveLoadBalancer<ServiceInstance> loadBalancer = loadBalancerClientFactory.getInstance(serviceId);
if (loadBalancer == null) {
return null;
}
Response<ServiceInstance> loadBalancerResponse = Mono.from(loadBalancer.choose()).block();
if (loadBalancerResponse == null) {
return null;
}
return loadBalancerResponse.getServer();
}


​ 可以看到核心方法choose里面的逻辑是委托给ReactiveLoadBalancer来实现的,这是一种常见做法,将堵塞式的方法委托给非堵塞式的方法。下面看看这个非堵塞式接口是如何实现的。

非堵塞式api

​ 上面是堵塞式的方式,而这种纯网络请求,不落库的场景是很容易做成异步形式的,下面看看非堵塞方式的api骨架。

image-20200930163902482

1
2
3
4
5
6
7
8
9
public interface ReactorLoadBalancer<T> extends ReactiveLoadBalancer<T> {

Mono<Response<T>> choose(Request request);

default Mono<Response<T>> choose() {
return choose(REQUEST);
}

}

非堵塞式的api更简单,他有一个choose方法,返回值是Response<T>,这个泛型T就是想要的到的结果数据。

我们要做的事情就是由服务id,选取一个服务实例返回,这就是choose方法应该做到的。

具体实现

​ 上面的就是spring-cloud负载均衡方面的接口定义,具体实现都在spring-cloud-loadbalance依赖里面。

打开spring.factories文件

image-20200930141712970

这个包下的配置文件很简单,只有三个,下面一个一个分析。

1. LoadBalancerCacheAutoConfiguration

​ 很显然此类与缓存有关,我们从注册中心获取到的服务信息是要缓存起来的,不可能每次都重新获取,此类上会创建一个LoadBalancerCacheManager对象,底层根据当前chasspath来选择Caffeine或evictor来缓存实现。

1
2
3
4
5
6
7
8
9
10
11
12
@Configuration(proxyBeanMethods = false)
@ConditionalOnClass(Caffeine.class)
protected static class CaffeineLoadBalancerCacheManagerConfiguration {

@Bean(autowireCandidate = false)
@ConditionalOnMissingBean
LoadBalancerCacheManager caffeineLoadBalancerCacheManager(
LoadBalancerCacheProperties cacheProperties) {
return new CaffeineBasedLoadBalancerCacheManager(cacheProperties);
}

}

2. BlockingLoadBalancerClientAutoConfiguration

​ 此类也很简单,他创建了BlockingLoadBalancerClient的对象,并且传入LoadBalancerClientFactory,因为堵塞式的处理逻辑是委托给非堵塞式的,这里没有太多逻辑。

1
2
3
4
5
6
7
@Bean
@ConditionalOnBean(LoadBalancerClientFactory.class)
@Primary
public BlockingLoadBalancerClient blockingLoadBalancerClient(
LoadBalancerClientFactory loadBalancerClientFactory) {
return new BlockingLoadBalancerClient(loadBalancerClientFactory);
}

​ 此堵塞式的客户端会将所有逻辑委托给非堵塞式的客户端。

1
2
3
4
5
6
7
8
9
10
11
12
13
public ServiceInstance choose(String serviceId) {
//获取非堵塞式客户端
ReactiveLoadBalancer<ServiceInstance> loadBalancer = loadBalancerClientFactory.getInstance(serviceId);
if (loadBalancer == null) {
return null;
}
//将逻辑委托给非堵塞客户端
Response<ServiceInstance> loadBalancerResponse = Mono.from(loadBalancer.choose()).block();
if (loadBalancerResponse == null) {
return null;
}
return loadBalancerResponse.getServer();
}

3. LoadBalancerAutoConfiguration

​ 此方法创建LoadBalancerClientFactory对象,这个类是一个NamedContextFactory类,他能根据当前容器创建子容器。

1
2
3
4
5
6
7
8
@ConditionalOnMissingBean
@Bean
public LoadBalancerClientFactory loadBalancerClientFactory() {
LoadBalancerClientFactory clientFactory = new LoadBalancerClientFactory();
clientFactory.setConfigurations(
this.configurations.getIfAvailable(Collections::emptyList));
return clientFactory;
}

构造方法如下,默认将LoadBalancerClientConfiguration类注册到子容器内。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
public class LoadBalancerClientFactory
extends NamedContextFactory<LoadBalancerClientSpecification>
implements ReactiveLoadBalancer.Factory<ServiceInstance> {

public static final String NAMESPACE = "loadbalancer";


public static final String PROPERTY_NAME = NAMESPACE + ".client.name";

//默认注册LoadBalancerClientConfiguration类
public LoadBalancerClientFactory() {
super(LoadBalancerClientConfiguration.class, NAMESPACE, PROPERTY_NAME);
}

public String getName(Environment environment) {
return environment.getProperty(PROPERTY_NAME);
}

//从容器内获取ReactiveLoadBalancer
@Override
public ReactiveLoadBalancer<ServiceInstance> getInstance(String serviceId) {
return getInstance(serviceId, ReactorServiceInstanceLoadBalancer.class);
}
}

主要看他的getInstance方法

1
2
3
4
5
6
7
8
9
10
public <T> T getInstance(String name, Class<T> type) {
//获取子容器
AnnotationConfigApplicationContext context = getContext(name);
//从子容器内获取type类型的bean
if (BeanFactoryUtils.beanNamesForTypeIncludingAncestors(context,
type).length > 0) {
return context.getBean(type);
}
return null;
}

获取子容器的过程,这里使用缓存存储创建的每个子容器,子容器不会重复创建

1
2
3
4
5
6
7
8
9
10
protected AnnotationConfigApplicationContext getContext(String name) {
if (!this.contexts.containsKey(name)) {
synchronized (this.contexts) {
if (!this.contexts.containsKey(name)) {
this.contexts.put(name, createContext(name));
}
}
}
return this.contexts.get(name);
}

创建子容器的过程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
protected AnnotationConfigApplicationContext createContext(String name) {
AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext();
//如果存在name名称的配置将配置注册进去
//这里的配置可以通过setConfigurations方法设置
if (this.configurations.containsKey(name)) {
for (Class<?> configuration : this.configurations.get(name)
.getConfiguration()) {
context.register(configuration);
}
}

//查询是否有default.开头的配置,将这些配置注册进去
for (Map.Entry<String, C> entry : this.configurations.entrySet()) {
if (entry.getKey().startsWith("default.")) {
for (Class<?> configuration : entry.getValue().getConfiguration()) {
context.register(configuration);
}
}
}

//注册构造方法里传入的LoadBalancerClientConfiguration.class
context.register(PropertyPlaceholderAutoConfiguration.class,
this.defaultConfigType);

//将[propertyName - name] 存入环境变量
context.getEnvironment().getPropertySources().addFirst(new MapPropertySource(
this.propertySourceName,
Collections.<String, Object>singletonMap(this.propertyName, name)));
if (this.parent != null) {
//将子容器的父容器设为当前容器
context.setParent(this.parent);
context.setClassLoader(this.parent.getClassLoader());
}
context.setDisplayName(generateDisplayName(name));
context.refresh();
return context;
}

​ 下面是LoadBalancerClientConfiguration配置类,每个serverId都会创建一个子容器,每个子容器都会解析一遍此类,将解析出来的bean注册进容器。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
public class LoadBalancerClientConfiguration {

private static final int REACTIVE_SERVICE_INSTANCE_SUPPLIER_ORDER = 193827465;

@Bean
@ConditionalOnMissingBean
public ReactorLoadBalancer<ServiceInstance> reactorServiceInstanceLoadBalancer(
Environment environment,
LoadBalancerClientFactory loadBalancerClientFactory) {
//从容器内获取serverId名称
//因为创建子容器过程中,已经将[propertyName - name]键值对存储环境变量里了,此处获取的就是serverId
String name = environment.getProperty(LoadBalancerClientFactory.PROPERTY_NAME);

//从容器内获取ServiceInstanceListSupplier对象,这是ServiceInstance的列表
return new RoundRobinLoadBalancer(loadBalancerClientFactory.getLazyProvider(name,
ServiceInstanceListSupplier.class), name);
}

/*
下面这些就是配置ServiceInstanceListSupplier的过程,他会根据当前环境自动选择堵塞式或者非堵塞式
使用order注解控制顺序,非堵塞式的优先堵塞式的。

同时根据配置文件选择是否根据地域优先或使用health-check
*/
@Configuration(proxyBeanMethods = false)
@ConditionalOnReactiveDiscoveryEnabled
@Order(REACTIVE_SERVICE_INSTANCE_SUPPLIER_ORDER)
public static class ReactiveSupportConfiguration {

@Bean
@ConditionalOnBean(ReactiveDiscoveryClient.class)
@ConditionalOnMissingBean
@ConditionalOnProperty(value = "spring.cloud.loadbalancer.configurations",
havingValue = "default", matchIfMissing = true)
public ServiceInstanceListSupplier discoveryClientServiceInstanceListSupplier(
ConfigurableApplicationContext context) {
return ServiceInstanceListSupplier.builder().withDiscoveryClient()
.withCaching().build(context);
}

@Bean
@ConditionalOnBean(ReactiveDiscoveryClient.class)
@ConditionalOnMissingBean
@ConditionalOnProperty(value = "spring.cloud.loadbalancer.configurations",
havingValue = "zone-preference")
public ServiceInstanceListSupplier zonePreferenceDiscoveryClientServiceInstanceListSupplier(
ConfigurableApplicationContext context) {
return ServiceInstanceListSupplier.builder().withDiscoveryClient()
.withZonePreference().withCaching().build(context);
}

@Bean
@ConditionalOnBean(ReactiveDiscoveryClient.class)
@ConditionalOnMissingBean
@ConditionalOnProperty(value = "spring.cloud.loadbalancer.configurations",
havingValue = "health-check")
public ServiceInstanceListSupplier healthCheckDiscoveryClientServiceInstanceListSupplier(
ConfigurableApplicationContext context) {
return ServiceInstanceListSupplier.builder().withDiscoveryClient()
.withHealthChecks().withCaching().build(context);
}

@Bean
@ConditionalOnBean(ReactiveDiscoveryClient.class)
@ConditionalOnMissingBean
public ServiceInstanceSupplier discoveryClientServiceInstanceSupplier(
ReactiveDiscoveryClient discoveryClient, Environment env,
ApplicationContext context) {
DiscoveryClientServiceInstanceSupplier delegate = new DiscoveryClientServiceInstanceSupplier(
discoveryClient, env);
ObjectProvider<LoadBalancerCacheManager> cacheManagerProvider = context
.getBeanProvider(LoadBalancerCacheManager.class);
if (cacheManagerProvider.getIfAvailable() != null) {
return new CachingServiceInstanceSupplier(delegate,
cacheManagerProvider.getIfAvailable());
}
return delegate;
}

}

@Configuration(proxyBeanMethods = false)
@ConditionalOnBlockingDiscoveryEnabled
@Order(REACTIVE_SERVICE_INSTANCE_SUPPLIER_ORDER + 1)
public static class BlockingSupportConfiguration {

@Bean
@ConditionalOnBean(DiscoveryClient.class)
@ConditionalOnMissingBean
@ConditionalOnProperty(value = "spring.cloud.loadbalancer.configurations",
havingValue = "default", matchIfMissing = true)
public ServiceInstanceListSupplier discoveryClientServiceInstanceListSupplier(
ConfigurableApplicationContext context) {
return ServiceInstanceListSupplier.builder().withBlockingDiscoveryClient()
.withCaching().build(context);
}

@Bean
@ConditionalOnBean(DiscoveryClient.class)
@ConditionalOnMissingBean
@ConditionalOnProperty(value = "spring.cloud.loadbalancer.configurations",
havingValue = "zone-preference")
public ServiceInstanceListSupplier zonePreferenceDiscoveryClientServiceInstanceListSupplier(
ConfigurableApplicationContext context) {
return ServiceInstanceListSupplier.builder().withBlockingDiscoveryClient()
.withZonePreference().withCaching().build(context);
}

@Bean
@ConditionalOnBean(DiscoveryClient.class)
@ConditionalOnMissingBean
@ConditionalOnProperty(value = "spring.cloud.loadbalancer.configurations",
havingValue = "health-check")
public ServiceInstanceListSupplier healthCheckDiscoveryClientServiceInstanceListSupplier(
ConfigurableApplicationContext context) {
return ServiceInstanceListSupplier.builder().withBlockingDiscoveryClient()
.withHealthChecks().withCaching().build(context);
}

@Bean
@ConditionalOnBean(DiscoveryClient.class)
@ConditionalOnMissingBean
public ServiceInstanceSupplier discoveryClientServiceInstanceSupplier(
DiscoveryClient discoveryClient, Environment env,
ApplicationContext context) {
DiscoveryClientServiceInstanceSupplier delegate = new DiscoveryClientServiceInstanceSupplier(
discoveryClient, env);
ObjectProvider<LoadBalancerCacheManager> cacheManagerProvider = context
.getBeanProvider(LoadBalancerCacheManager.class);
if (cacheManagerProvider.getIfAvailable() != null) {
return new CachingServiceInstanceSupplier(delegate,
cacheManagerProvider.getIfAvailable());
}
return delegate;
}

}

}

​ 下面看RoundRobinLoadBalancer是如何处理的。他从serviceInstanceListSupplierProvider里面获取到List<ServiceInstance>,并使用getInstanceResponse方法轮询选择一个服务对象返回。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
public class RoundRobinLoadBalancer implements ReactorServiceInstanceLoadBalancer {

public Mono<Response<ServiceInstance>> choose(Request request) {
// TODO: move supplier to Request?
// Temporary conditional logic till deprecated members are removed.
if (serviceInstanceListSupplierProvider != null) {
ServiceInstanceListSupplier supplier = serviceInstanceListSupplierProvider
.getIfAvailable(NoopServiceInstanceListSupplier::new);

//获取服务列表
return supplier.get().next().map(this::getInstanceResponse);
}
ServiceInstanceSupplier supplier = this.serviceInstanceSupplier
.getIfAvailable(NoopServiceInstanceSupplier::new);
return supplier.get().collectList().map(this::getInstanceResponse);
}

//使用轮询的方式
private Response<ServiceInstance> getInstanceResponse(
List<ServiceInstance> instances) {
int pos = Math.abs(this.position.incrementAndGet());

ServiceInstance instance = instances.get(pos % instances.size());

return new DefaultResponse(instance);
}

}

​ 默认ServiceInstanceListSupplier的生成是有ServiceInstanceListSupplier.builder工具类实现的,最后调用的build方法将当前容器传入进去,所需的discoverClientcache等都能从容器内获取。

1
2
3
4
5
public ServiceInstanceListSupplier discoveryClientServiceInstanceListSupplier(
ConfigurableApplicationContext context) {
return ServiceInstanceListSupplier.builder().withDiscoveryClient()
.withCaching().build(context);
}

@LoadBalancerClient注解

​ 在创建LoadBalancerClientFactory时注意到调用setConfigurations方法,这些配置类是自动注入进来的,那么这些配置类是从哪里创建的,又是在哪里起作用的呢,通过@LoadBalancerClient注解可以方便的注入这些配置进去。

1
2
3
4
5
6
7
8
@ConditionalOnMissingBean
@Bean
public LoadBalancerClientFactory loadBalancerClientFactory() {
LoadBalancerClientFactory clientFactory = new LoadBalancerClientFactory();
clientFactory.setConfigurations(
this.configurations.getIfAvailable(Collections::emptyList));
return clientFactory;
}

注解需要提供名称表明配置要注册到哪个子容器里。

1
2
3
4
5
6
7
8
9
10
11
12
public @interface LoadBalancerClient {

@AliasFor("name")
String value() default "";

@AliasFor("value")
String name() default "";

Class<?>[] configuration() default {};

}

此注解引入了LoadBalancerClientConfigurationRegistrar类,这里将注解上name和configuration包装成LoadBalancerClientSpecification对象,注册到容器里。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
@Override
public void registerBeanDefinitions(AnnotationMetadata metadata,
BeanDefinitionRegistry registry) {
Map<String, Object> attrs = metadata
.getAnnotationAttributes(LoadBalancerClients.class.getName(), true);
if (attrs != null && attrs.containsKey("value")) {
AnnotationAttributes[] clients = (AnnotationAttributes[]) attrs.get("value");
for (AnnotationAttributes client : clients) {
registerClientConfiguration(registry, getClientName(client),
client.get("configuration"));
}
}
if (attrs != null && attrs.containsKey("defaultConfiguration")) {
String name;
if (metadata.hasEnclosingClass()) {
name = "default." + metadata.getEnclosingClassName();
}
else {
name = "default." + metadata.getClassName();
}
registerClientConfiguration(registry, name,
attrs.get("defaultConfiguration"));
}
Map<String, Object> client = metadata
.getAnnotationAttributes(LoadBalancerClient.class.getName(), true);
String name = getClientName(client);
if (name != null) {
registerClientConfiguration(registry, name, client.get("configuration"));
}
}


private static void registerClientConfiguration(BeanDefinitionRegistry registry,
Object name, Object configuration) {
BeanDefinitionBuilder builder = BeanDefinitionBuilder
.genericBeanDefinition(LoadBalancerClientSpecification.class);
builder.addConstructorArgValue(name);
builder.addConstructorArgValue(configuration);
registry.registerBeanDefinition(name + ".LoadBalancerClientSpecification",
builder.getBeanDefinition());
}

​ 创建子容器时,根据名字从列表里获取配置并注册。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
protected AnnotationConfigApplicationContext createContext(String name) {
AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext();
//根据名字选择筛选出配置,将配置注册到子容器里
if (this.configurations.containsKey(name)) {
for (Class<?> configuration : this.configurations.get(name)
.getConfiguration()) {
context.register(configuration);
}
}
for (Map.Entry<String, C> entry : this.configurations.entrySet()) {
if (entry.getKey().startsWith("default.")) {
for (Class<?> configuration : entry.getValue().getConfiguration()) {
context.register(configuration);
}
}
}

上面可以看到@LoadBalancerClient是引入一个名字和配置类,配置类最终会注册到名称指定的子容器里。

总结一下负载均衡获取根据实例id获取实例的过程

  1. 创建LoadBalancerClientFactory工厂类,其是一个子容器的工厂
  2. LoadBalancerClientFactory获取bean时会自动创建子容器,创建过程中会解析配置类(构造方法里传入的和@LoadBalancerClient注解引入的)
  3. 由工厂类获取ReactiveLoadBalancer对象(解析好配置类后,此对象就会在子容器里)
  4. 创建BlockingLoadBalancerClient供堵塞式api使用,其将逻辑委托给ReactiveLoadBalancer
  5. 这样我们就能从容器里获取堵塞式和非堵塞式的LoadbalancerClient

总结

spring-loadbalance是一个小巧的库,它支持堵塞式和非堵塞式的api,其中堵塞式是委托给非堵塞式来完成的,它的原理是使用DiscoverClient获取指定服务id对应的服务实例列表,通过轮询的方式从其中选择一个实例,并且可以配置缓存。


springCloudLoadbalance源码解读
https://www.huangchaoyu.com/2239800896.html
作者
hcy
发布于
2020年9月29日
更新于
2024年8月17日
许可协议
