聊一聊ChannelHandler里面方法被调用时机

​ 本文聊一聊netty的ChannelHandler里面方法被调用的时机，这里面的方法大部分都是被netty回掉的，而不是我们主动调用。

​ 下面的分析都是基于netty4来分析，netty将ChannelHandler分为的in和out两部分。下面看他们的方法签名。

方法签名

ChannelHandler：

image-20200424133432059

​ 主要就是handlerAdded 和 handlerRemoved方法，这两个方法在将handler添加到pipline和从pipline上移除时调用，与数据传输无关，所以放在了这个接口里面。

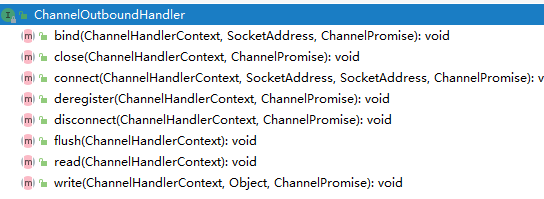

ChannelOutboundHandler：

image-20200424133853407

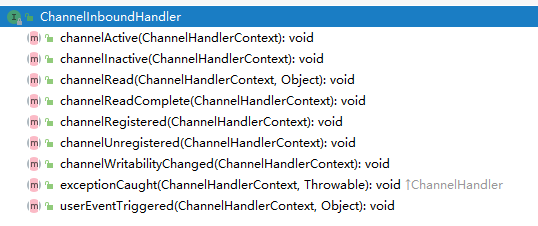

ChannelInboundHandler：

image-20200424134116481

调用逐个分析

handlerAdded

​ 查看DefaultChannelPipeline类的addLast()方法。这个方法会先将handler封装成HandlerContext，然后添加到pipline尾部，最后调用callHandlerAdded0方法回掉handler的handlerAdded方法。

​ 当发现此handler还没有registered，则将上面的操作创建成任务，等到registered后再执行。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
@Override
   public final ChannelPipeline addLast(EventExecutorGroup group, String name, ChannelHandler handler) {
       final AbstractChannelHandlerContext newCtx;
       synchronized (this) {
           checkMultiplicity(handler);

           newCtx = newContext(group, filterName(name, handler), handler);

           addLast0(newCtx);

           // If the registered is false it means that the channel was not registered on an eventLoop yet.
           // In this case we add the context to the pipeline and add a task that will call
           // ChannelHandler.handlerAdded(...) once the channel is registered.
           if (!registered) {
               newCtx.setAddPending();
               callHandlerCallbackLater(newCtx, true);
               return this;
           }

           EventExecutor executor = newCtx.executor();
           if (!executor.inEventLoop()) {
               callHandlerAddedInEventLoop(newCtx, executor);
               return this;
           }
       }
       callHandlerAdded0(newCtx);
       return this;
   }

handlerRemove

​ 查看DefaultChannelPipeline的remove方法，会先从pipline链上找到handler对应的context，然后移除context，最后在方法callHandlerRemoved0()里回掉handlerRemove()。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
private AbstractChannelHandlerContext remove(final AbstractChannelHandlerContext ctx) {
     assert ctx != head && ctx != tail;

     synchronized (this) {
         atomicRemoveFromHandlerList(ctx);

         // If the registered is false it means that the channel was not registered on an eventloop yet.
         // In this case we remove the context from the pipeline and add a task that will call
         // ChannelHandler.handlerRemoved(...) once the channel is registered.
         if (!registered) {
             callHandlerCallbackLater(ctx, false);
             return ctx;
         }

         EventExecutor executor = ctx.executor();
         if (!executor.inEventLoop()) {
             executor.execute(new Runnable() {
                 @Override
                 public void run() {
                     callHandlerRemoved0(ctx);
                 }
             });
             return ctx;
         }
     }
     callHandlerRemoved0(ctx);
     return ctx;
 }

channelRegistered

查看AbstractChannel内部类unsafe的下面方法,为了看起来更清晰我将它的注释删除了，此方法会先调用doRegister()方法，这个方法是要求子类实现的，然后在调用pipeline.fireChannelRegistered()来回掉pipline链上的channelRegistered()。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
private void register0(ChannelPromise promise) {
    try {
        if (!promise.setUncancellable() || !ensureOpen(promise)) {
            return;
        }
        boolean firstRegistration = neverRegistered;
        //真实注册子类实现此方法
        doRegister();
        neverRegistered = false;
        registered = true;
        //没register之前添加到pipline上的handler，在这里真实添加
        pipeline.invokeHandlerAddedIfNeeded();
        safeSetSuccess(promise);
        //回掉channelRegistered方法
        pipeline.fireChannelRegistered();
        if (isActive()) {
            if (firstRegistration) {
                pipeline.fireChannelActive();
            } else if (config().isAutoRead()) {
                beginRead();
            }
        }
    } catch (Throwable t) {
        closeForcibly();
        closeFuture.setClosed();
        safeSetFailure(promise, t);
    }
}

​

pipeline.fireChannelRegistered()方法会首先调用head的channelRegister(),然后head会传递给下一个inChannelHandler节点。

1
2
3
4
5
@Override
public final ChannelPipeline fireChannelRegistered() {
    AbstractChannelHandlerContext.invokeChannelRegistered(head);
    return this;
}

channelActive

​ 此方法在channel处理连接成功后回掉，如在程序内连接到其他网站，连接成功后回掉此方法。

因为只有客户端channel才能连接到其他服务器，serverChannel是被动连接的，所以此方法对serverChanel是无效的，但是serverChannel被连接时会生成的与之对应的clientChannel，此时会回调此方法。

​ 查看AbstractNioChannel内部类unsafe的下面方法。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
@Override
public final void connect(
        final SocketAddress remoteAddress, final SocketAddress localAddress, final ChannelPromise promise) {
    if (!promise.setUncancellable() || !ensureOpen(promise)) {
        return;
    }

    try {
        if (connectPromise != null) {
            // Already a connect in process.
            throw new ConnectionPendingException();
        }

        boolean wasActive = isActive();
        //进行连接，
        if (doConnect(remoteAddress, localAddress)) {
            fulfillConnectPromise(promise, wasActive);
        } else {
            connectPromise = promise;
            requestedRemoteAddress = remoteAddress;

            // Schedule connect timeout.
            int connectTimeoutMillis = config().getConnectTimeoutMillis();
            if (connectTimeoutMillis > 0) {
                connectTimeoutFuture = eventLoop().schedule(new Runnable() {
                    @Override
                    public void run() {
                        ChannelPromise connectPromise = AbstractNioChannel.this.connectPromise;
                        ConnectTimeoutException cause =
                                new ConnectTimeoutException("connection timed out: " + remoteAddress);
                        if (connectPromise != null && connectPromise.tryFailure(cause)) {
                            close(voidPromise());
                        }
                    }
                }, connectTimeoutMillis, TimeUnit.MILLISECONDS);
            }

            promise.addListener(new ChannelFutureListener() {
                @Override
                public void operationComplete(ChannelFuture future) throws Exception {
                    if (future.isCancelled()) {
                        if (connectTimeoutFuture != null) {
                            connectTimeoutFuture.cancel(false);
                        }
                        connectPromise = null;
                        close(voidPromise());
                    }
                }
            });
        }
    } catch (Throwable t) {
        promise.tryFailure(annotateConnectException(t, remoteAddress));
        closeIfClosed();
    }
}

​ 此方法会调用子类的doConnect()方法，如果连接成功了doConnect返回true，如果还没连接成功，doConnect会注册OP_CONNECT事件到select里并返回false。

​ 如果连接成功了，此方法会调用fulfillConnectPromise()，这里面回掉pipline的channelActive()，如果没连接成功，则添加超时时间的定时任务，超时事件内还没成功就取消连接并报错，并且没连接成功会注册OP_CONNECT事件到select内，当程序发现连接成功时，会处理CONNECT事件处理方法在下面。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
private void processSelectedKey(SelectionKey k, AbstractNioChannel ch) {
    final AbstractNioChannel.NioUnsafe unsafe = ch.unsafe();
    if (!k.isValid()) {
        final EventLoop eventLoop;
        try {
            eventLoop = ch.eventLoop();
        } catch (Throwable ignored) {
            return;
        }
        if (eventLoop == this) {
            unsafe.close(unsafe.voidPromise());
        }
        return;
    }

    try {
        int readyOps = k.readyOps();

        if ((readyOps & SelectionKey.OP_CONNECT) != 0) {
            //在这里处理OP_CONNECT事件，调用finishConnect方法
            int ops = k.interestOps();
            ops &= ~SelectionKey.OP_CONNECT;
            k.interestOps(ops);

            unsafe.finishConnect();
        }

        if ((readyOps & SelectionKey.OP_WRITE) != 0) {

            ch.unsafe().forceFlush();
        }

        if ((readyOps & (SelectionKey.OP_READ | SelectionKey.OP_ACCEPT)) != 0 || readyOps == 0) {
            unsafe.read();
        }
    } catch (CancelledKeyException ignored) {
        unsafe.close(unsafe.voidPromise());
    }
}

​ 遇到op_connect事件就是调用unsafe.finishConnect()方法，在这个方法里调用fulfillConnectPromise方法里回掉channelActive方法。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
@Override
public final void finishConnect() {
    // Note this method is invoked by the event loop only if the connection attempt was
    // neither cancelled nor timed out.

    assert eventLoop().inEventLoop();

    try {
        boolean wasActive = isActive();
        doFinishConnect();
        fulfillConnectPromise(connectPromise, wasActive);
    } catch (Throwable t) {
        fulfillConnectPromise(connectPromise, annotateConnectException(t, requestedRemoteAddress));
    } finally {
        // Check for null as the connectTimeoutFuture is only created if a connectTimeoutMillis > 0 is used
        // See https://github.com/netty/netty/issues/1770
        if (connectTimeoutFuture != null) {
            connectTimeoutFuture.cancel(false);
        }
        connectPromise = null;
    }
}

read

上面调用了pipline.channelActive里，首先找到的head,它的方法里有一个readIfIsAutoRead(),如果此channel设置的是自动读，他会从pipline的尾部tail开始调用read方法，如果我们没重写read方法，最终会调用到head的read方法。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
  @Override
  public void channelActive(ChannelHandlerContext ctx) {
      ctx.fireChannelActive();

      readIfIsAutoRead();
  }

private void readIfIsAutoRead() {
      if (channel.config().isAutoRead()) {
          channel.read();
      }
  }

     @Override
  public final ChannelPipeline read() {
      tail.read();
      return this;
  }

最终调用到下面代码，注册readInterestOp事件到select内。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
@Override
public final void beginRead() {
    assertEventLoop();

    if (!isActive()) {
        return;
    }

    try {
        doBeginRead();
    } catch (final Exception e) {
        invokeLater(new Runnable() {
            @Override
            public void run() {
                pipeline.fireExceptionCaught(e);
            }
        });
        close(voidPromise());
    }
}

@Override
protected void doBeginRead() throws Exception {
    // Channel.read() or ChannelHandlerContext.read() was called
    final SelectionKey selectionKey = this.selectionKey;
    if (!selectionKey.isValid()) {
        return;
    }

    readPending = true;

    final int interestOps = selectionKey.interestOps();
    if ((interestOps & readInterestOp) == 0) {
        selectionKey.interestOps(interestOps | readInterestOp);
    }
}

​ doBeginRead方法使用的readInterestOp并不一定是op_read，别被它的名称迷惑了，对于客户端的channel他是op_read，对于serverChannel他就是op_accept,是通过构造方法传进来的。

​ 这样对于服务器在bind成功后就可以accept了，对于client在connect成功后就可以read了。

channelRead 和 channelReadComplate

​ 这两个要在一起将，在客户端模式下，调用read注册op_read事件，下面是当有内容需要读取时的逻辑

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
private void processSelectedKey(SelectionKey k, AbstractNioChannel ch) {
    final AbstractNioChannel.NioUnsafe unsafe = ch.unsafe();
    if (!k.isValid()) {
        final EventLoop eventLoop;
        try {
            eventLoop = ch.eventLoop();
        } catch (Throwable ignored) {
            // If the channel implementation throws an exception because there is no event loop, we ignore this
            // because we are only trying to determine if ch is registered to this event loop and thus has authority
            // to close ch.
            return;
        }
        // Only close ch if ch is still registered to this EventLoop. ch could have deregistered from the event loop
        // and thus the SelectionKey could be cancelled as part of the deregistration process, but the channel is
        // still healthy and should not be closed.
        // See https://github.com/netty/netty/issues/5125
        if (eventLoop == this) {
            // close the channel if the key is not valid anymore
            unsafe.close(unsafe.voidPromise());
        }
        return;
    }

    try {
        int readyOps = k.readyOps();
        // We first need to call finishConnect() before try to trigger a read(...) or write(...) as otherwise
        // the NIO JDK channel implementation may throw a NotYetConnectedException.
        if ((readyOps & SelectionKey.OP_CONNECT) != 0) {
            // remove OP_CONNECT as otherwise Selector.select(..) will always return without blocking
            // See https://github.com/netty/netty/issues/924
            int ops = k.interestOps();
            ops &= ~SelectionKey.OP_CONNECT;
            k.interestOps(ops);

            unsafe.finishConnect();
        }

        // Process OP_WRITE first as we may be able to write some queued buffers and so free memory.
        if ((readyOps & SelectionKey.OP_WRITE) != 0) {
            // Call forceFlush which will also take care of clear the OP_WRITE once there is nothing left to write
            ch.unsafe().forceFlush();
        }

 // 这里可以看出当是OP_READ 或者 OP_ACCEPT时均回掉unsafe.read();
        if ((readyOps & (SelectionKey.OP_READ | SelectionKey.OP_ACCEPT)) != 0 || readyOps == 0) {
            unsafe.read();
        }
    } catch (CancelledKeyException ignored) {
        unsafe.close(unsafe.voidPromise());
    }
}

​ 这里可以看出当是OP_READ 或者 OP_ACCEPT时均回掉unsafe.read()，虽然调用的方法名称是read()，但对于客户端来说是read数据，对于服务器来说是accept，处理逻辑是写在unsafe子类里面的，

下面先看客户端的

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
@Override
       public final void read() {
           final ChannelConfig config = config();
           if (shouldBreakReadReady(config)) {
               clearReadPending();
               return;
           }
           final ChannelPipeline pipeline = pipeline();
           final ByteBufAllocator allocator = config.getAllocator();
           final RecvByteBufAllocator.Handle allocHandle = recvBufAllocHandle();
           allocHandle.reset(config);

           ByteBuf byteBuf = null;
           boolean close = false;
           try {
               do {
                   byteBuf = allocHandle.allocate(allocator);
                   allocHandle.lastBytesRead(doReadBytes(byteBuf));
                   if (allocHandle.lastBytesRead() <= 0) {
                       // nothing was read. release the buffer.
                       byteBuf.release();
                       byteBuf = null;
                       close = allocHandle.lastBytesRead() < 0;
                       if (close) {
                           // There is nothing left to read as we received an EOF.
                           readPending = false;
                       }
                       break;
                   }

                   allocHandle.incMessagesRead(1);
                   readPending = false;
                   pipeline.fireChannelRead(byteBuf);
                   byteBuf = null;
               } while (allocHandle.continueReading());

               allocHandle.readComplete();
               pipeline.fireChannelReadComplete();

               if (close) {
                   closeOnRead(pipeline);
               }
           } catch (Throwable t) {
               handleReadException(pipeline, byteBuf, t, close, allocHandle);
           } finally {
               // Check if there is a readPending which was not processed yet.
               // This could be for two reasons:
               // * The user called Channel.read() or ChannelHandlerContext.read() in channelRead(...) method
               // * The user called Channel.read() or ChannelHandlerContext.read() in channelReadComplete(...) method
               //
               // See https://github.com/netty/netty/issues/2254
               if (!readPending && !config.isAutoRead()) {
                   removeReadOp();
               }
           }
       }
   }

下面是服务端的

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
 @Override
    public void read() {
        assert eventLoop().inEventLoop();
        final ChannelConfig config = config();
        final ChannelPipeline pipeline = pipeline();
        final RecvByteBufAllocator.Handle allocHandle = unsafe().recvBufAllocHandle();
        allocHandle.reset(config);

        boolean closed = false;
        Throwable exception = null;
        try {
            try {
                do {
                    int localRead = doReadMessages(readBuf);
                    if (localRead == 0) {
                        break;
                    }
                    if (localRead < 0) {
                        closed = true;
                        break;
                    }

                    allocHandle.incMessagesRead(localRead);
                } while (allocHandle.continueReading());
            } catch (Throwable t) {
                exception = t;
            }

            int size = readBuf.size();
            for (int i = 0; i < size; i ++) {
                readPending = false;
                pipeline.fireChannelRead(readBuf.get(i));
            }
            readBuf.clear();
            allocHandle.readComplete();
            pipeline.fireChannelReadComplete();

            if (exception != null) {
                closed = closeOnReadError(exception);

                pipeline.fireExceptionCaught(exception);
            }

            if (closed) {
                inputShutdown = true;
                if (isOpen()) {
                    close(voidPromise());
                }
            }
        } finally {
            // Check if there is a readPending which was not processed yet.
            // This could be for two reasons:
            // * The user called Channel.read() or ChannelHandlerContext.read() in channelRead(...) method
            // * The user called Channel.read() or ChannelHandlerContext.read() in channelReadComplete(...) method
            //
            // See https://github.com/netty/netty/issues/2254
            if (!readPending && !config.isAutoRead()) {
                removeReadOp();
            }
        }
    }
}

​ 从代码能看出对于client的channel多次读取数据调用pipeline.fireChannelRead(byteBuf),最后调用一次pipeline.fireChannelReadComplete()，

​ 对于server模式的channel，也有read方法，但它读取到的不是数据而是子连接，然后调用pipline的fireChannelRead方法处理子连接，具体处理逻辑在ServerBootStrap里面，就是对子连接进行config，然后注册到serverChannel相同的eventLoop里面。

channelInactive，channelUnregistered，handlerRemoved

有很多因素会导致channelInactive，当连接断开，报错，主动断开等等，会依次回掉上面三个方法。

可以查看pipline.close()方法，逻辑不复杂，先关闭java的channel，并且从select中删除注册的channel。

exceptionCaught

如果在某个handler内报错了，则会调用当前handler的exceptionCaught方法，默认情况下未重写方法时是继续向下查找。如果在监听器内报错了，则会调用head节点的exceptionCaught。

bind

​ 这个方法是socket作为server注册时，绑定到本地端口时使用的，查看AbstractBootstrap的bind方法，会调用pipline的bind方法，这属于出站消息，先调用tail的bind方法，如果没重写此方法，最终调用head的bind方法。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
@Override
public final void bind(final SocketAddress localAddress, final ChannelPromise promise) {
    assertEventLoop();

    if (!promise.setUncancellable() || !ensureOpen(promise)) {
        return;
    }

    // See: https://github.com/netty/netty/issues/576
    if (Boolean.TRUE.equals(config().getOption(ChannelOption.SO_BROADCAST)) &&
        localAddress instanceof InetSocketAddress &&
        !((InetSocketAddress) localAddress).getAddress().isAnyLocalAddress() &&
        !PlatformDependent.isWindows() && !PlatformDependent.maybeSuperUser()) {
        // Warn a user about the fact that a non-root user can't receive a
        // broadcast packet on *nix if the socket is bound on non-wildcard address.
        logger.warn(
                "A non-root user can't receive a broadcast packet if the socket " +
                "is not bound to a wildcard address; binding to a non-wildcard " +
                "address (" + localAddress + ") anyway as requested.");
    }

    boolean wasActive = isActive();
    try {
        doBind(localAddress);
    } catch (Throwable t) {
        safeSetFailure(promise, t);
        closeIfClosed();
        return;
    }

    if (!wasActive && isActive()) {
        invokeLater(new Runnable() {
            @Override
            public void run() {
                pipeline.fireChannelActive();
            }
        });
    }

    safeSetSuccess(promise);
}

​ 最终在dobind方法里，将serverChannelbind到指定端口上。

connect

​ 这个方法和bind方法类似，但只对于客户端的channel有效，使用bootstrap启动客户端连接时，最后一步会调用此方法，然后bootstrap就会创建channel，再注册到select里，再调用pipline.connect()方法来处理连接逻辑，如果不重写此方法，最终会在head里调用unsafe.connect()，实现连接。

​ 这里还涉及到dns解析的问题，因为connect之前要解析传入的域名为ip地址，代码在bootstrap的connect里面。

write

​ write也属于出站数据，我们一般会重写此方法来处理出站数据如加密，规范格式，自定义协议等。

总结

​ 以上就是netty4版本里面的channel各个方法的调用过程，了解这些方法在什么时候会被调用对学习netty有很大帮助，在这之前需要先弄懂pipline里面的链式结构，还要了解java原生的nio的用法，才能看懂netty里面的用法。

#netty #ChannelHandler
聊一聊ChannelHandler里面方法被调用时机
https://www.huangchaoyu.com/887461231.html
作者
hcy
发布于
2020年4月24日
更新于
2024年8月17日
许可协议
